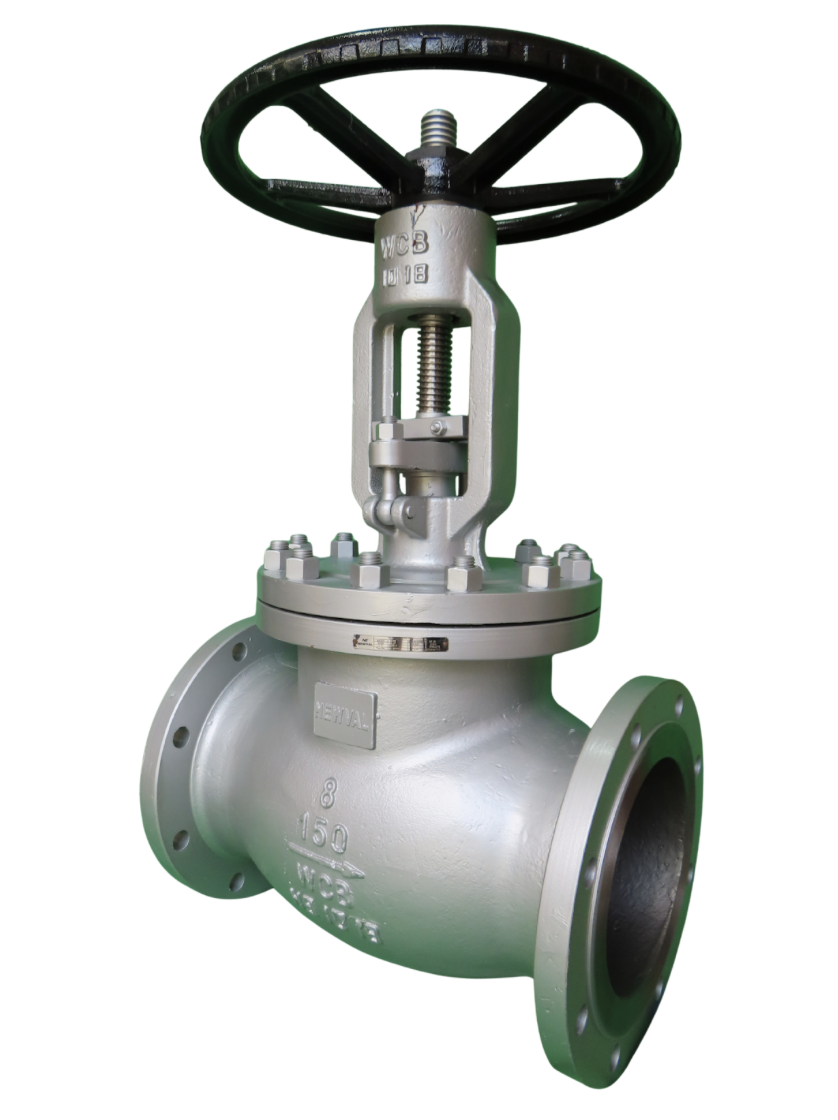

Model:
GL204, GL205, GL206, GL207 GL208

Specifications

Size Range: 2” to 24”
Operating Temperature: -29°C to 495°C
Pressure Classes: ASME Class 150, 300, 600, 900
End Connection Types: Flanged, Butt Weld, RTJ

Standards

Design Code: API 600 / ASME
Face-to-Face Dimensions: ASME B16.10
Flange Dimensions: ASME B16.5
Butt Weld Ends: ASME B16.25
Testing & Inspection: API 598
Pressure & Temperature Ratings: ASME B16.34

Materials

Body Material: ASTM A216 WCB, A351 CF8 / CF8M, A217 WC6 / WC9, LCC
Trim Options: #1 to #18
