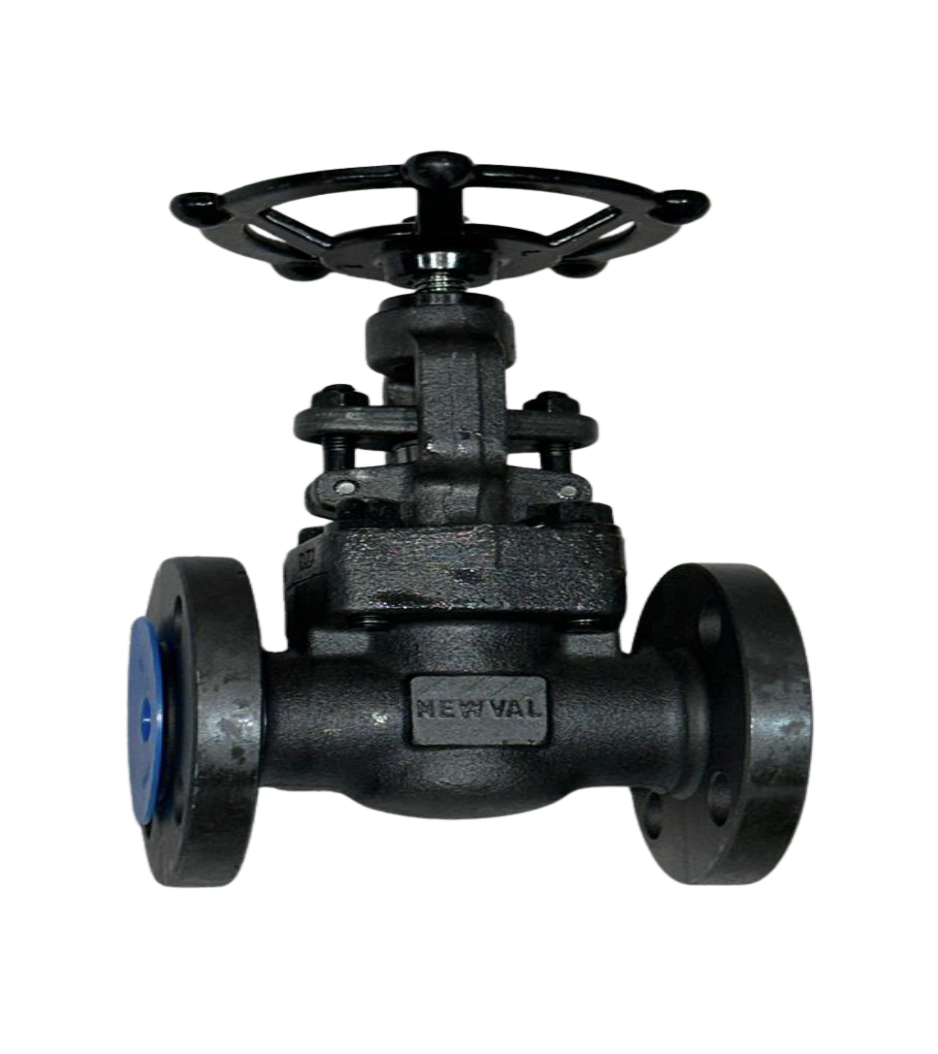

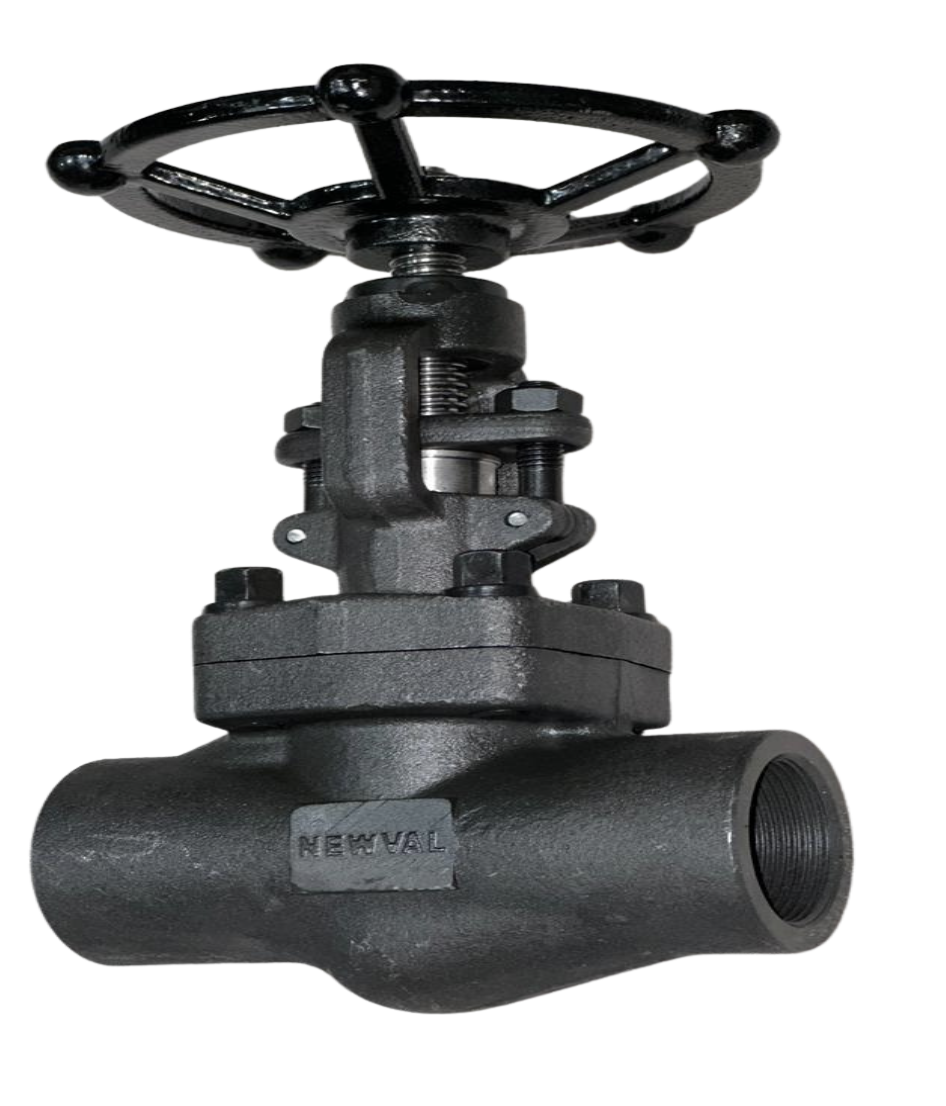

NEWVAL API602 Forged Steel Globe Valve
Model:
GL203, GL204
Specifications
Size Range: ½” – 2”
Maximum Temperature: Up to 500°C
Pressure Classes: ASME Class 150, 300, 600, 900, 1500
End Connections: Threaded, Socket/Butt Weld, Flanged
Standards
Design Code: API 602
Face-to-Face Dimensions: ASME B16.10
Testing & Inspection: API 598
Pressure & Temperature Ratings: ASME B16.34
Materials
Body: Forged Steel A105, F304, F316, F11, F22, LF2 and others
Trim Options: #1 – #18
