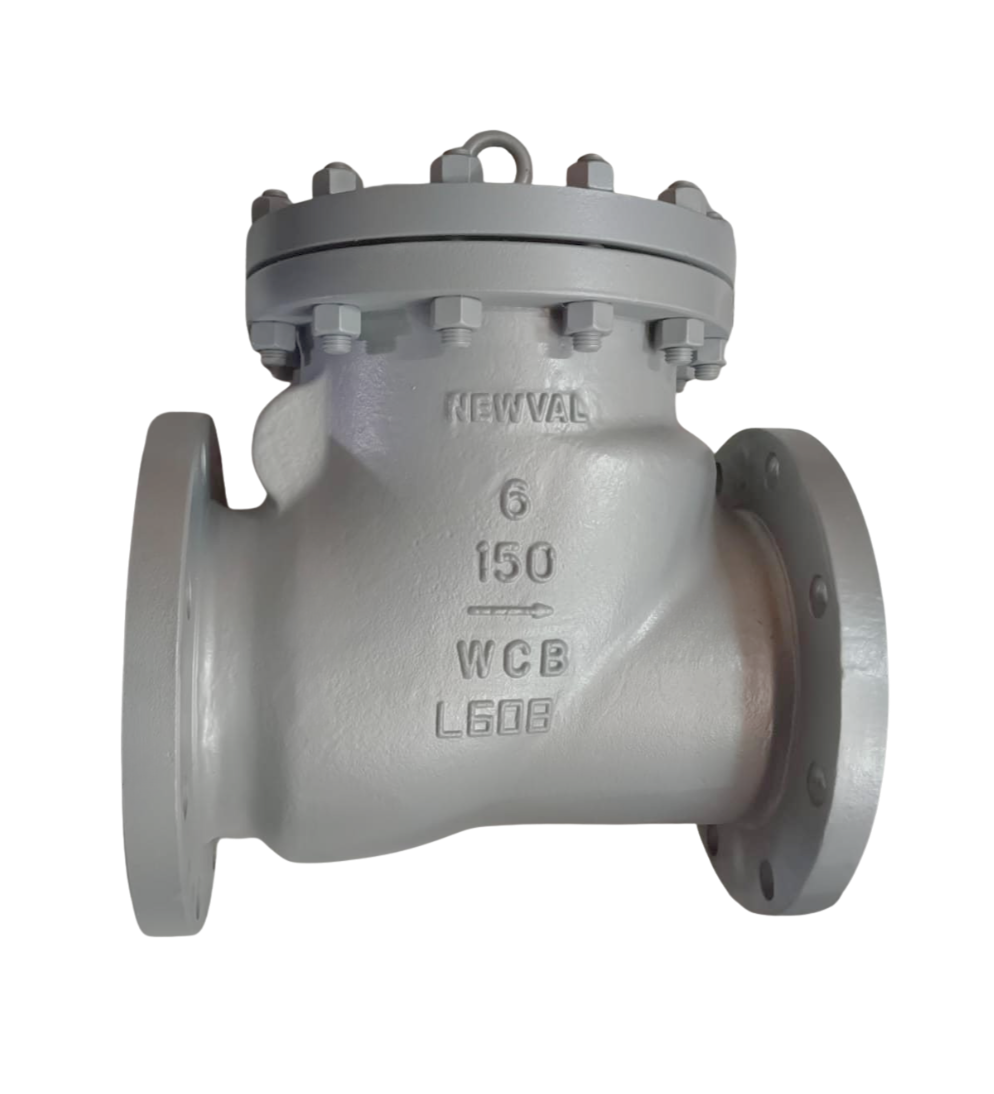

Model
CV304, CV306, CV3061, CV310, CV311

Specifications

Size Range: 2” – 18”
Maximum Temperature: Up to 500°C
Pressure Classes: ASME Class 150, 300, 600
End Connections: Flanged, RTJ

Standards

Design Codes: API 6D, BS 1868
Face-to-Face Dimensions: ASME B16.10
Flange Dimensions: ASME B16.5
Butt Weld Dimensions: ASME B16.25
Testing & Inspection: API 598

Materials

Body Material: ASTM A216 WCB, A351 CF8 / CF8M, A217 WC6 / WC9, LCC
Trim Options: #1 to #18
