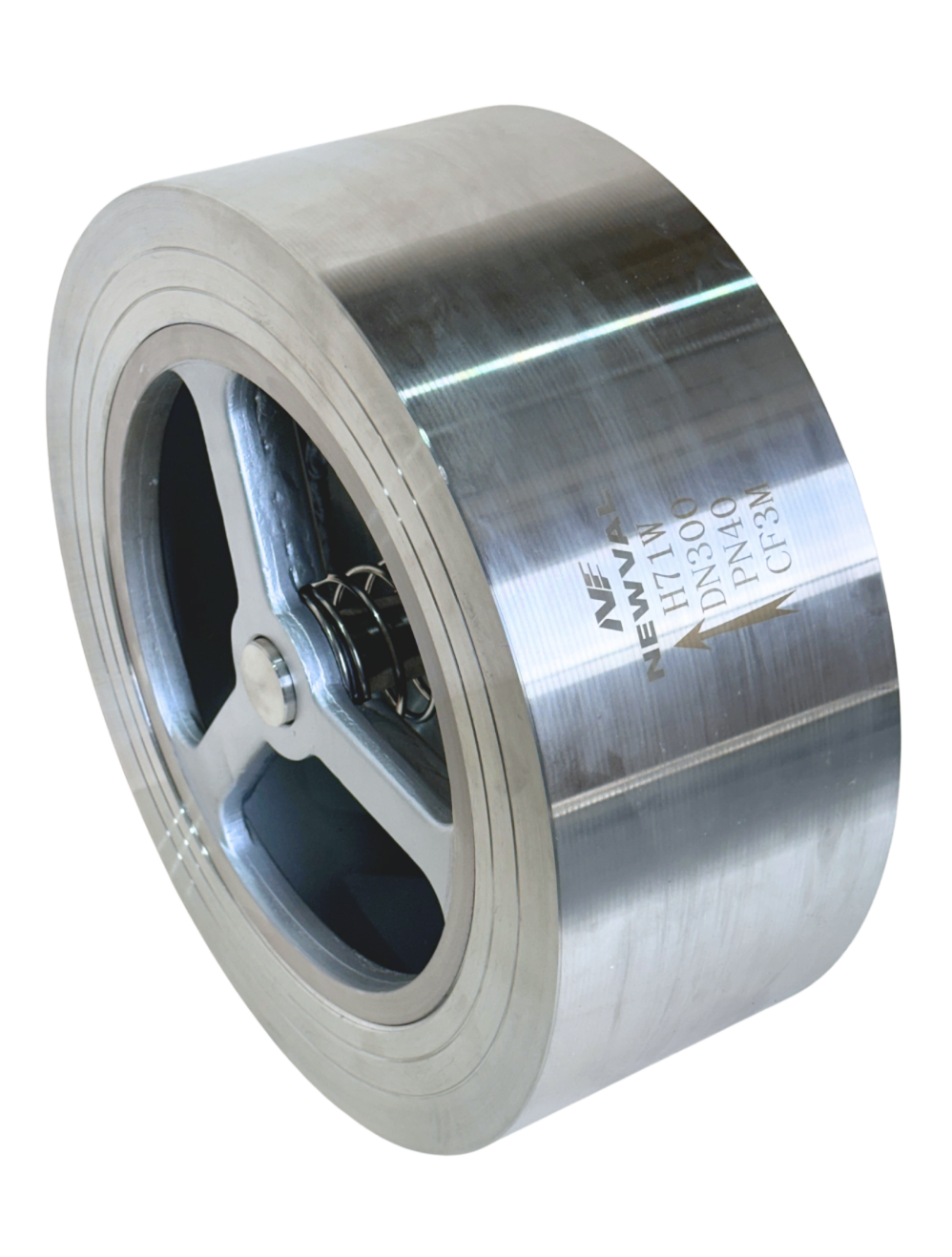

Model

CV302, CV303, CV303SP

Specifications

Size Range: 50 – 250 mm (2” – 10”)
Maximum Temperature: Up to 425°C
Pressure Rating:
DN15 to DN100: 40 bar
DN125 to DN250: 16 bar
End Connections: Wafer Type, suitable for DIN and ANSI Flanges

Materials

Carbon Steel, ASTM A216 WCB, A351 CF8M SS316

CV303SP: Heavy Duty Design with thick body
