Model

HPBF5101

Specifications

Size Range: 50 – 1800 mm (2” – 72”)
Temperature Range: -46°C to 200°C
Pressure Classes: ASME Class 150, 300, 600, 900, 1500
End Connections: Wafer, Lug, or Double Flange

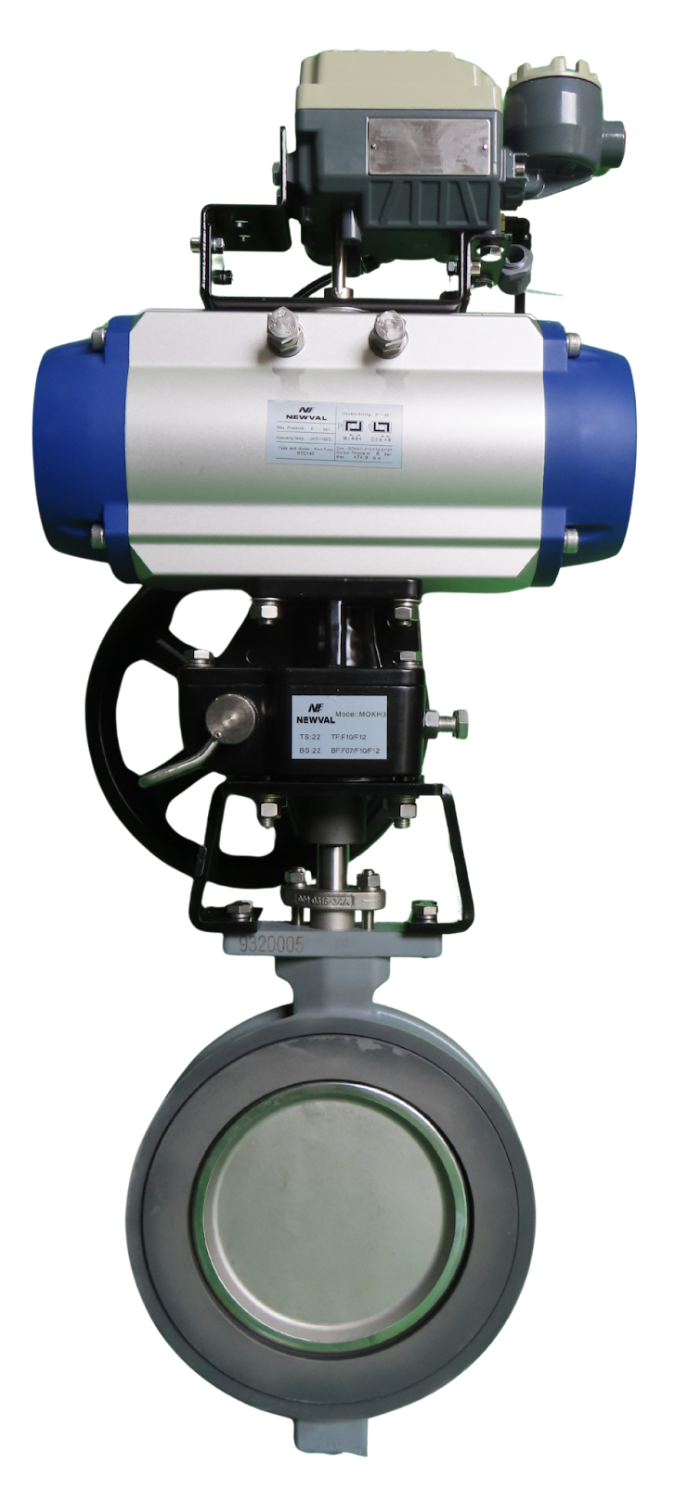

Actuation Options: Worm Gear, Pneumatic, or Electric Actuator

Materials

Body: ASTM A216 WCB/CF8 SS304/CF8M SS316
Seat: RPTFE
Disc: CS/SS

Standards

Design Standards: API 609
